The assembly process of the aluminum radiator is an important part to ensure its final performance and reliability. This process involves not only putting the individual components together precisely, but also considering how to maximize heat dissipation efficiency and ensure long-term stability. The following are the main steps and technical points of the aluminum radiator assembly process:

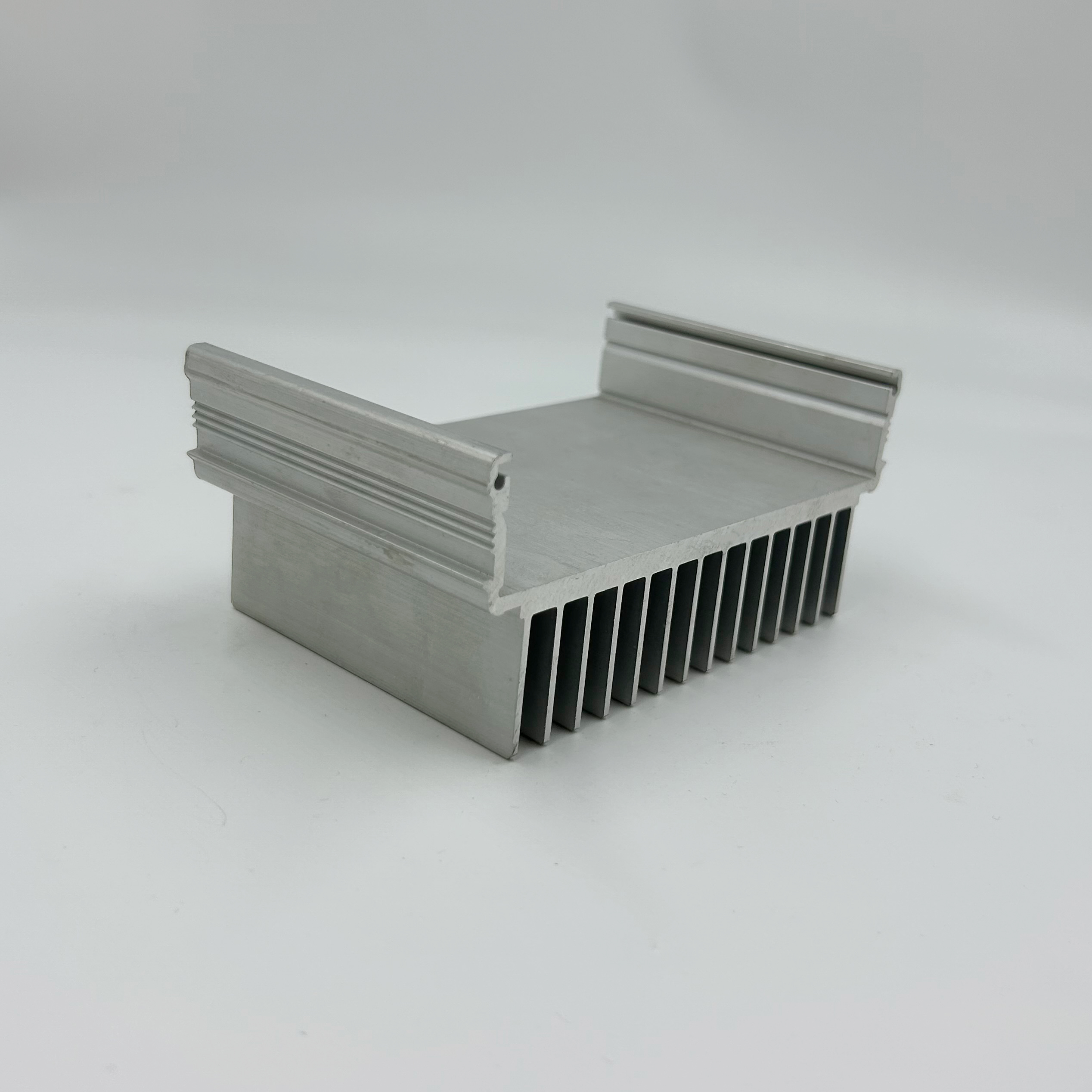

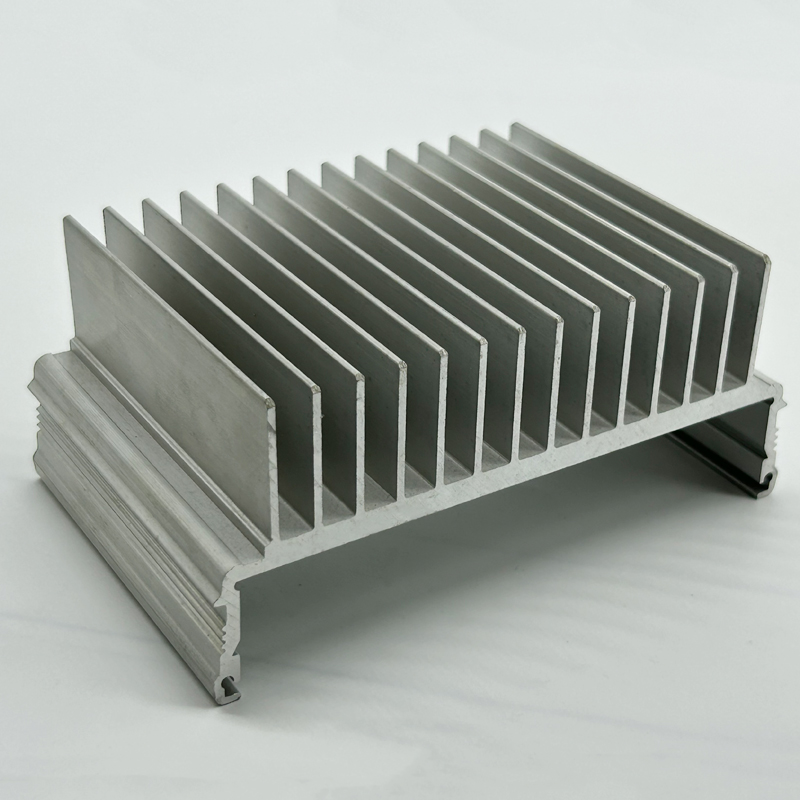

Aluminum Heat Sink1. Prepare components
Before assembly, all components (such as heat sinks, bases, heat pipes, etc.) need to undergo strict quality inspection to ensure that there are no defects or damage. If necessary, surface treatment (such as anodizing) is also required to improve corrosion resistance and aesthetics.
Aluminium Extrusions
2. Connect the heat sink to the base
Direct welding: For some applications requiring high performance, it may be necessary to secure the heat sink to the base by welding. Common welding methods include brazing and friction welding.
Brazing: The use of filler metal with a melting point lower than the substrate, at high temperatures to melt the filler metal and flow into the joint to form a strong connection.
Friction welding: The friction heat generated by high-speed rotation is used to soften the material, and then pressure is applied to bind it together.
Mechanical connection: The heat sink is fixed on the base by screws, rivets or other mechanical means. This method is low cost and easy to maintain.
Aluminum Cutting3. Install heat pipes (if applicable)
Heat pipes can significantly improve the efficiency of heat dissipation, especially in high-power equipment. Note when installing heat pipes:
Ensure that the heat pipe is in close contact with the heating source, and usually apply thermal paste to the contact surface to reduce thermal resistance.
Position the heat pipe so that it can effectively transfer heat to the heat sink area.
Aluminum Anodizing4. Configure the fan (if necessary)
Many aluminum radiators are equipped with fans to enhance air circulation and accelerate heat transfer. Note the following points when installing fans:
Location selection: The fan should be placed in the best position to ensure that the air flow covers the entire cooling surface.
Fixing method: Use screws or fasteners to firmly fix the fan to avoid noise or vibration during operation.
Electrical connection: Connect the power cord correctly and ensure compatibility with the motherboard or other control circuits.
5. Final inspection and testing
Appearance check: Verify that all components are properly installed and are not loose or misaligned.
Aluminum PartsFunctional test: The performance test of the assembled radiator is carried out to measure the temperature change under different loads to ensure that the design requirements are met.
Environmental adaptability test: simulate the conditions in the actual working environment, such as humidity, temperature fluctuations, etc., to verify the stability and durability of the product.
6. Packaging and delivery
After completing the above steps, the radiator will be properly packed to prevent damage during transportation. The choice of packaging materials should also take into account shock-proof, moisture-proof and other factors.
